Glass-ceramic Cooktop
Blending design simplicity and elegance

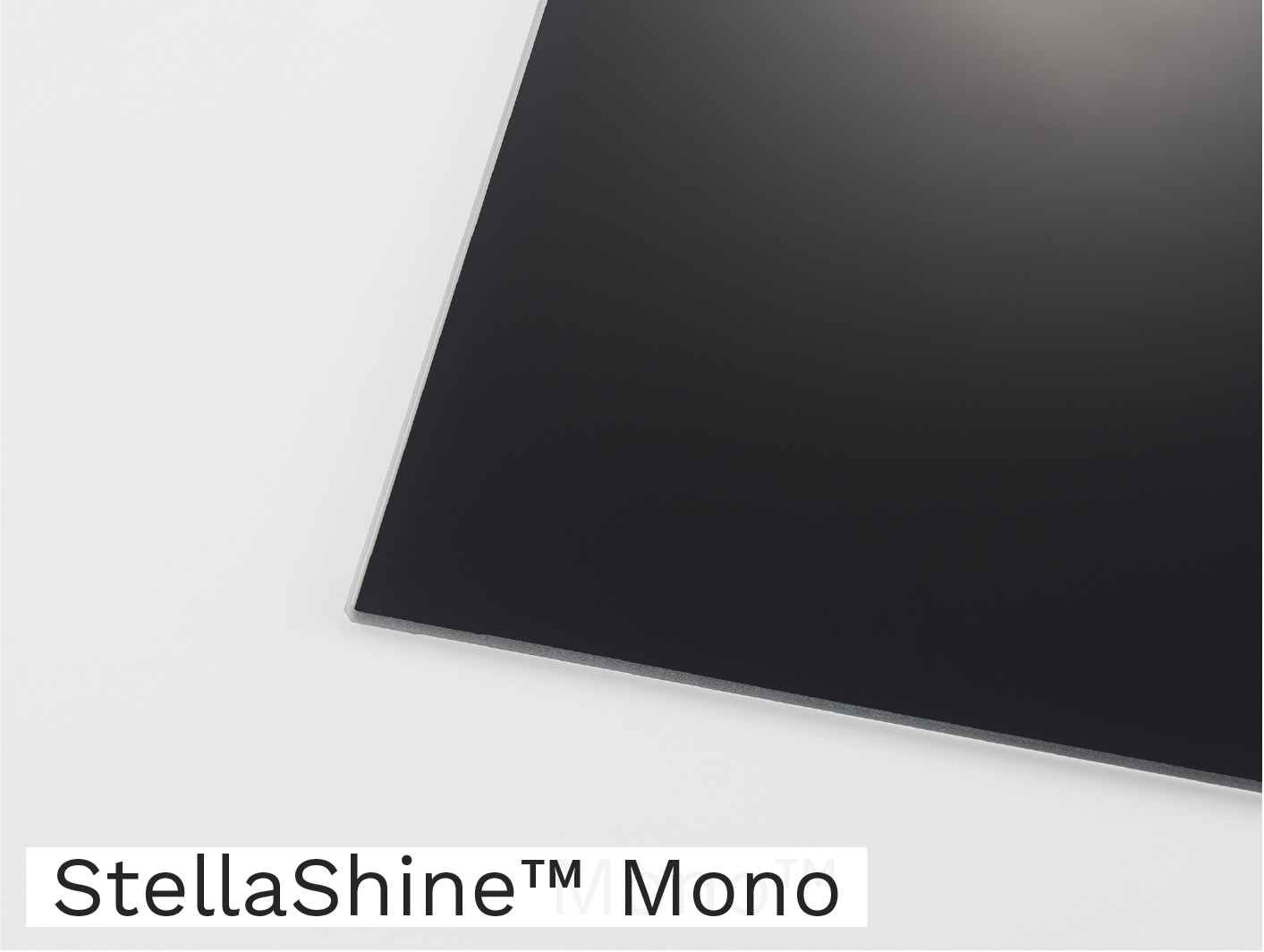

Beyond Traditional Black Glass
Achieve your ideal black

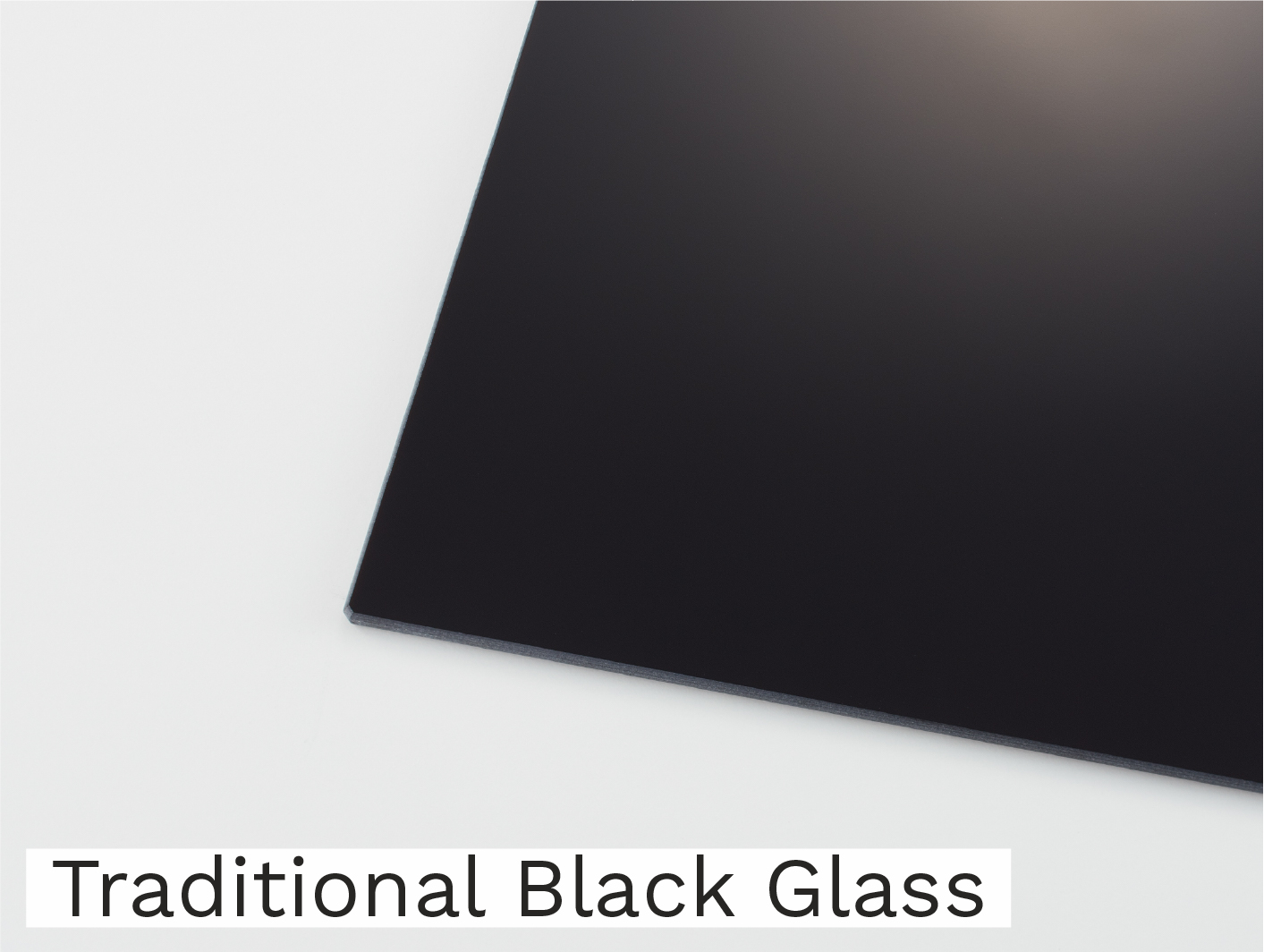

Unlike conventional black glass-ceramic, it delivers a truly deep and unblended black.

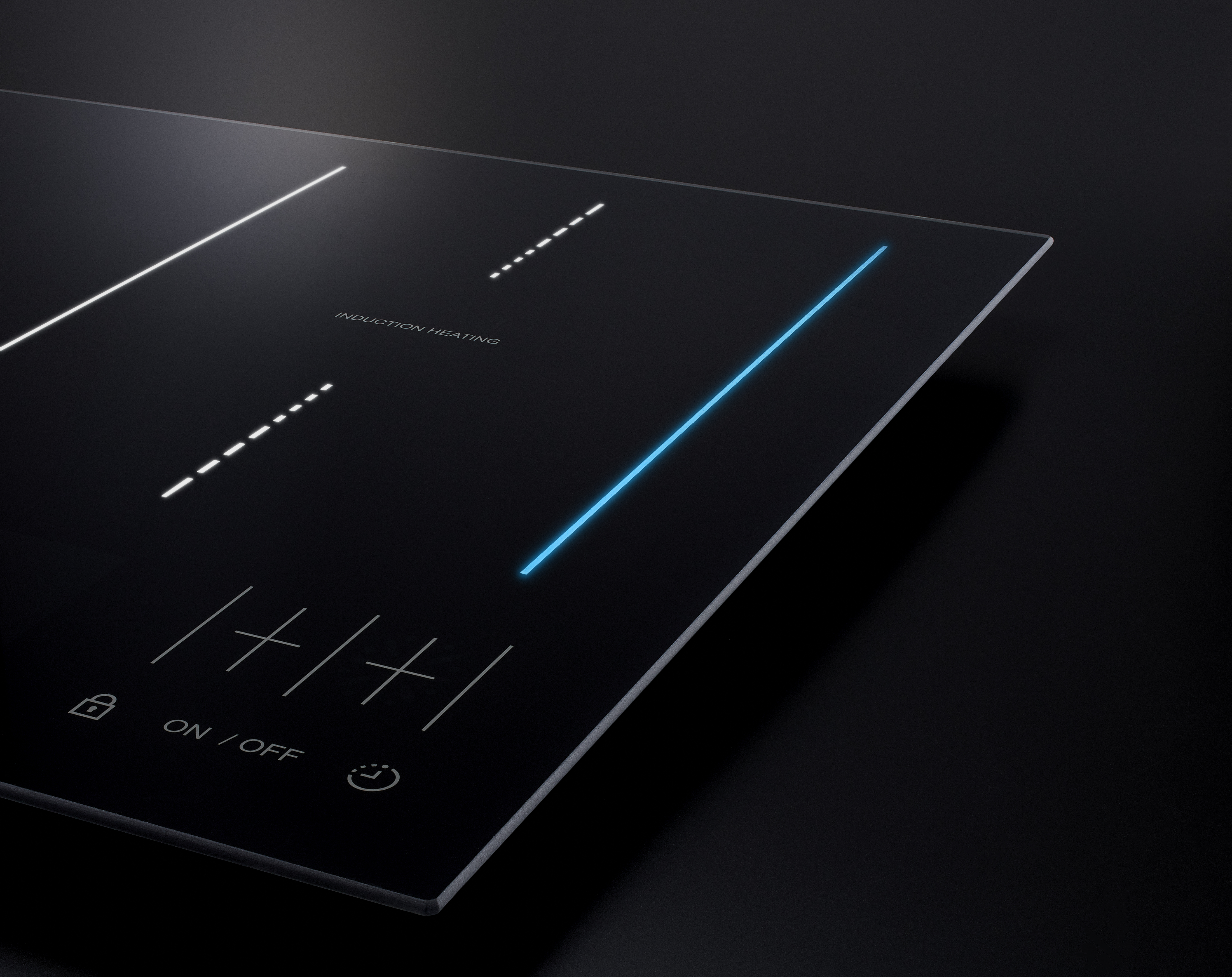

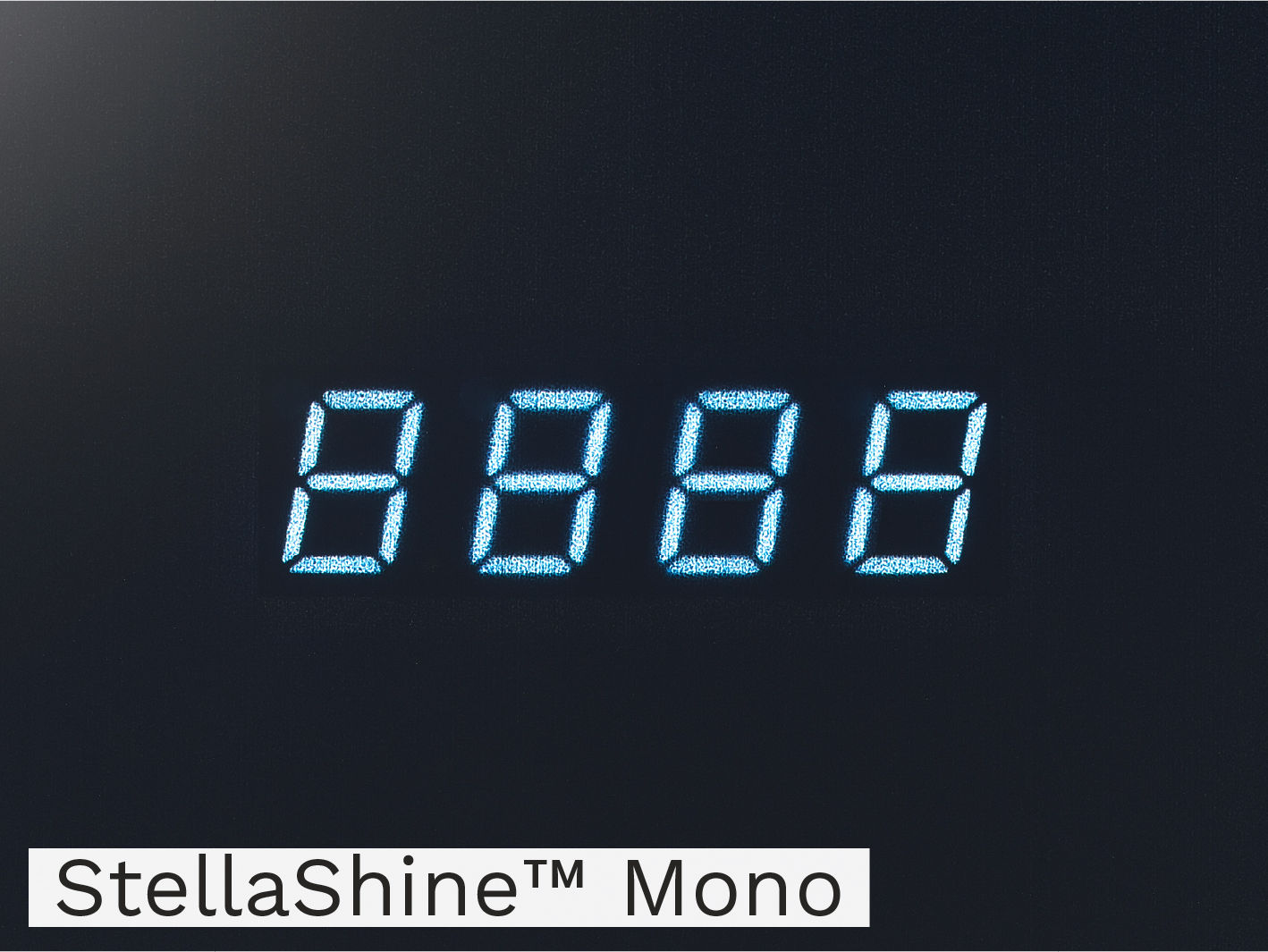

Vivid light shines through the dark

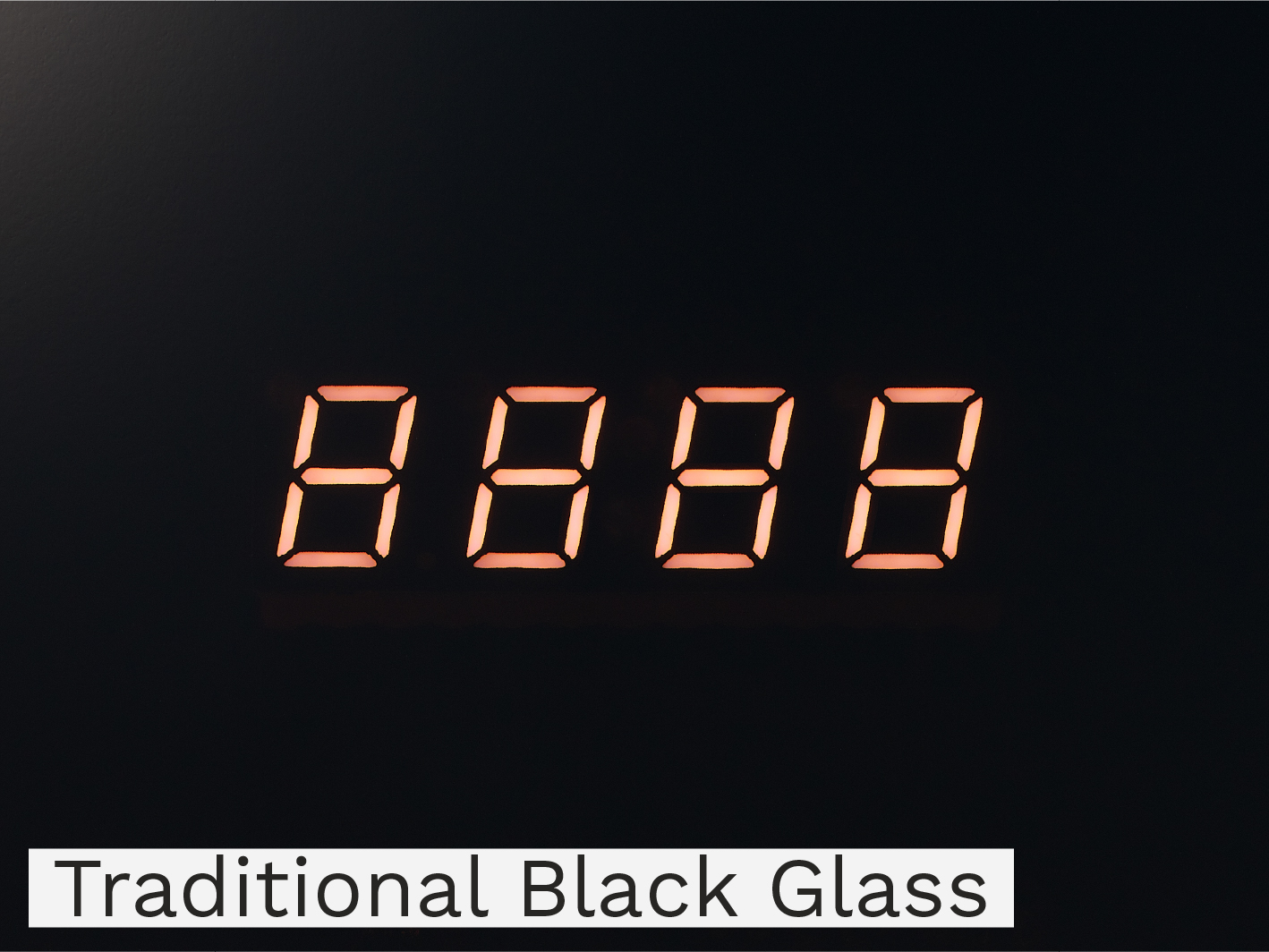

Unlike conventional black glass-ceramic, it transmits multicolor LEDs and LCDs. Conventional black glass-ceramic typically allows only red LED light to pass through.

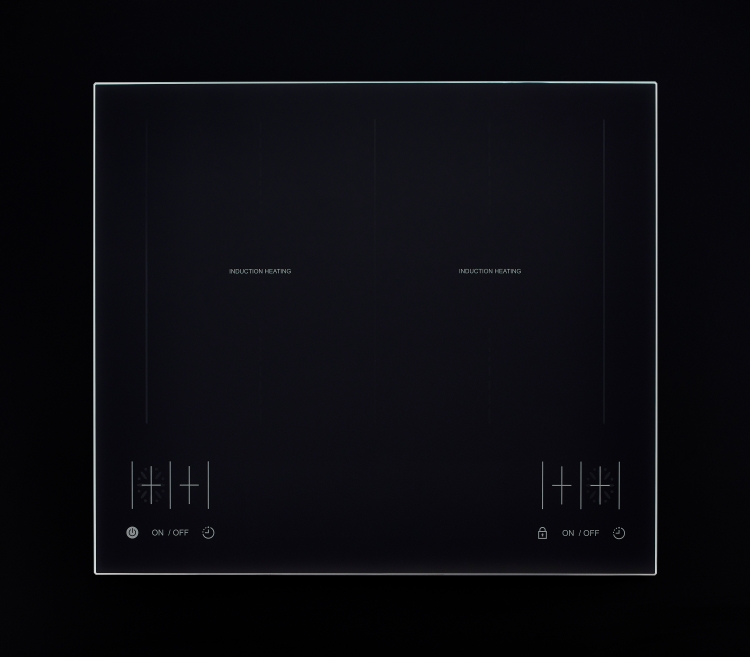

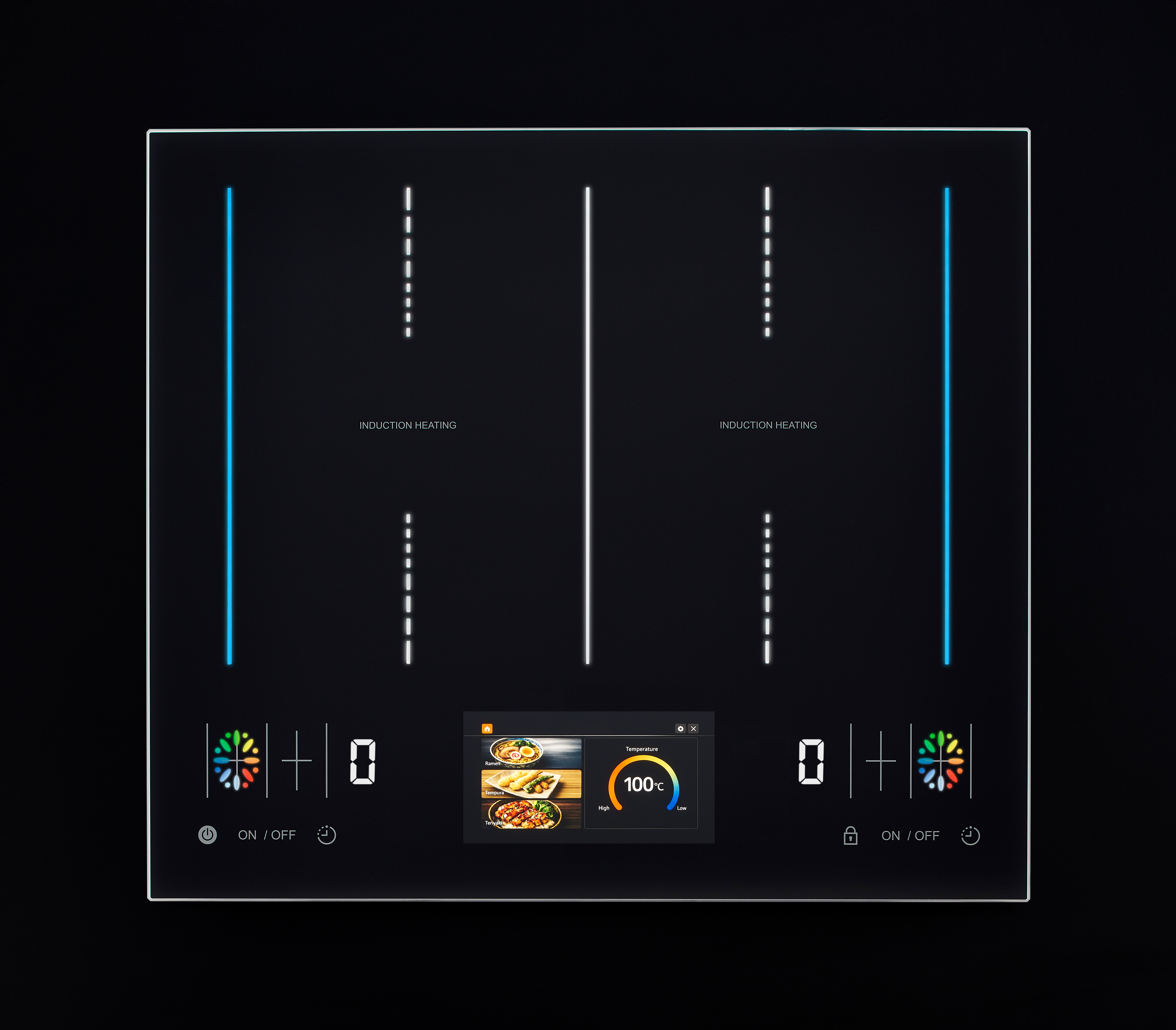

See the light, Feel the design
StellaShine™ Mono expands design freedom and usability.

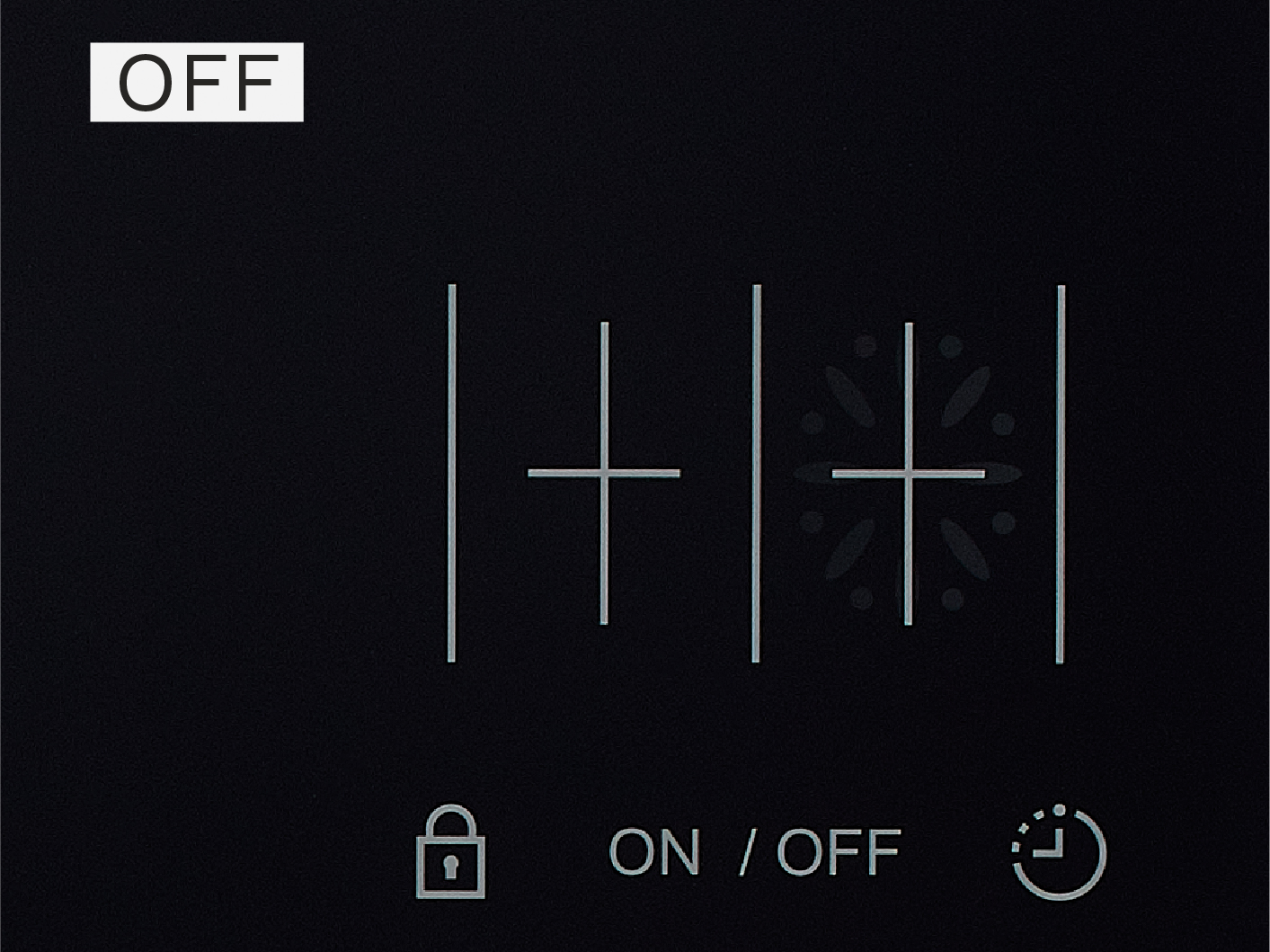

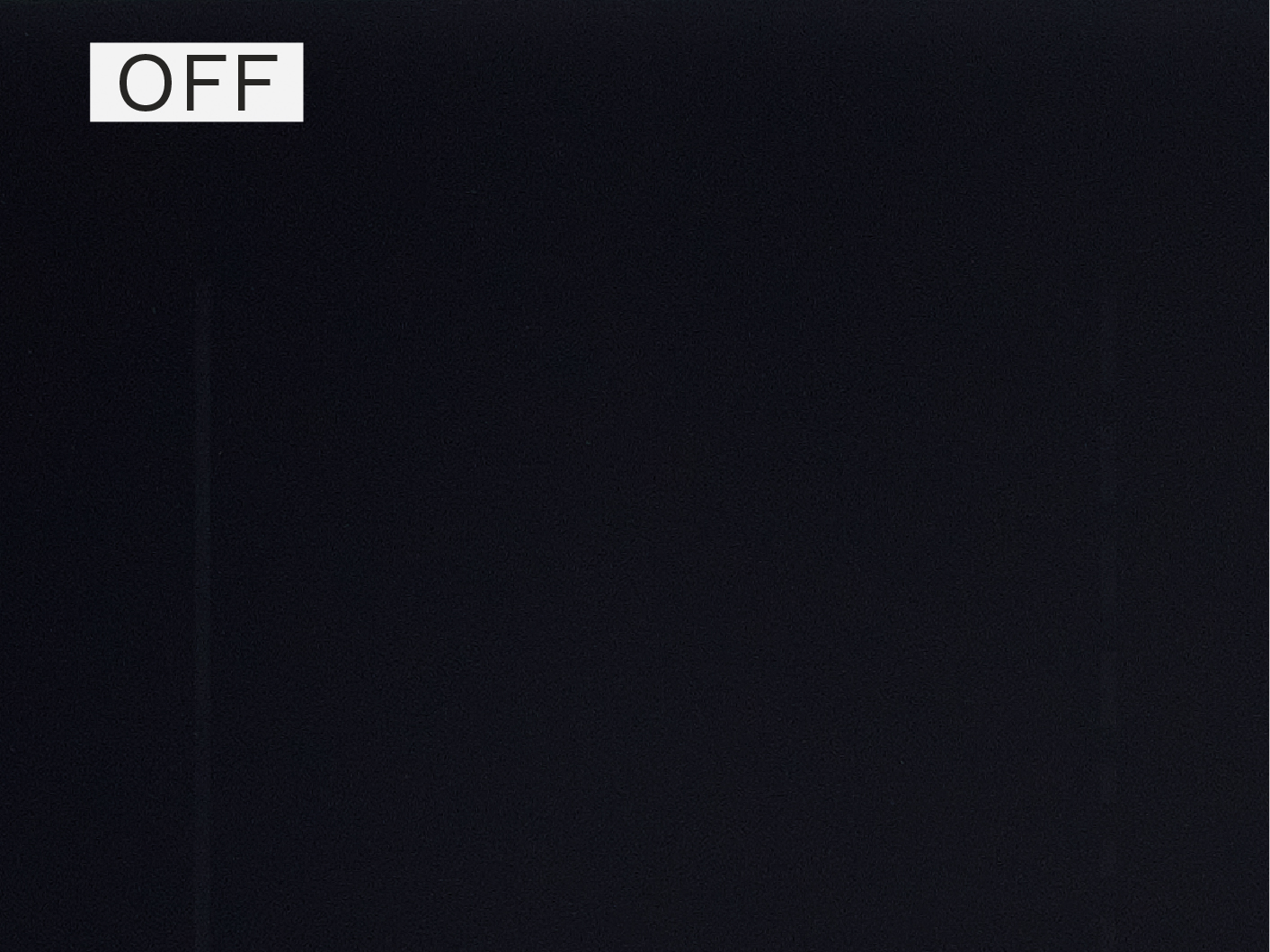

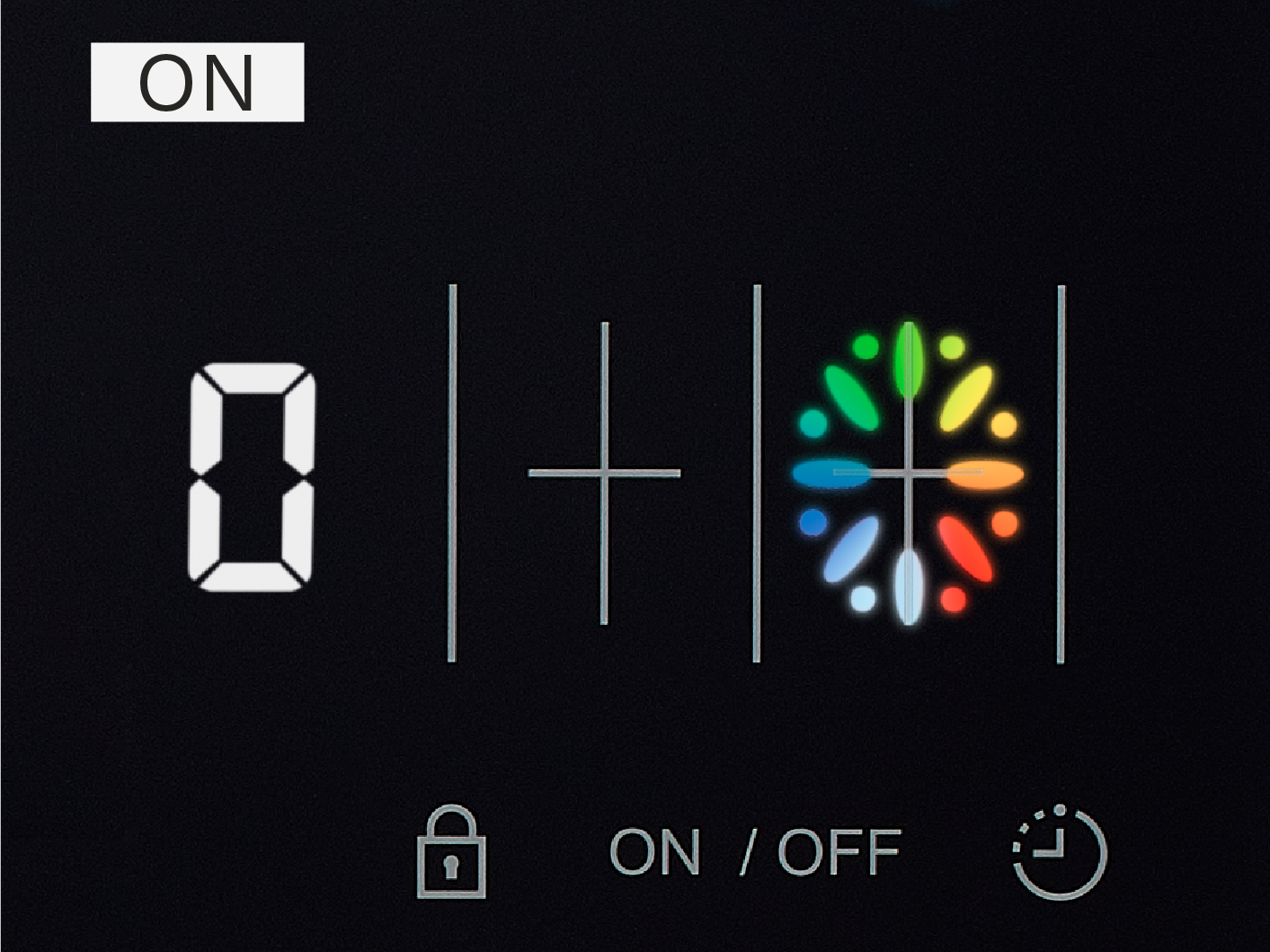

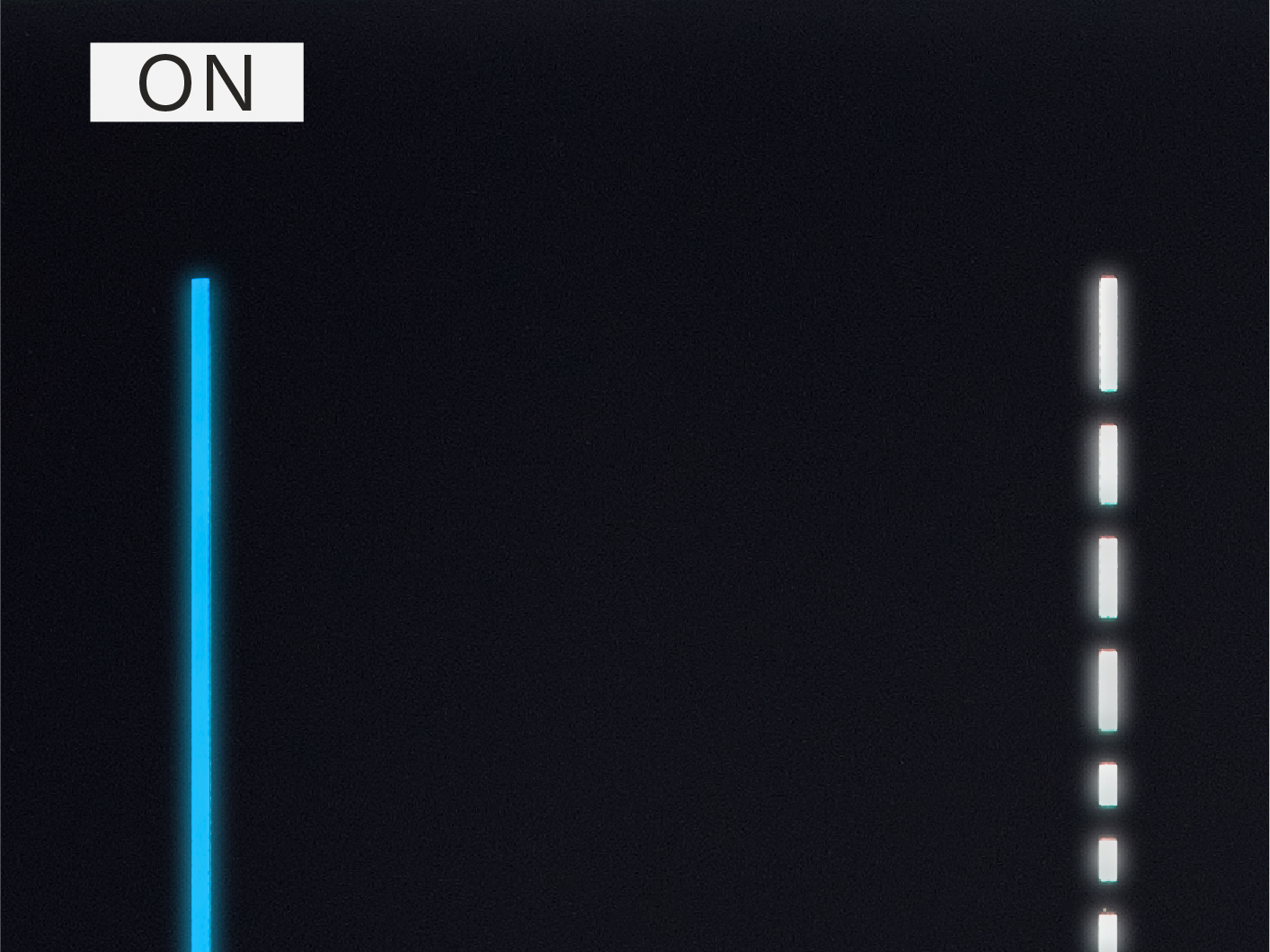

LED transmission (Dead front)
When the power is off, text and icons are not visible. When the power is on, light passes through the glass, making them appear.

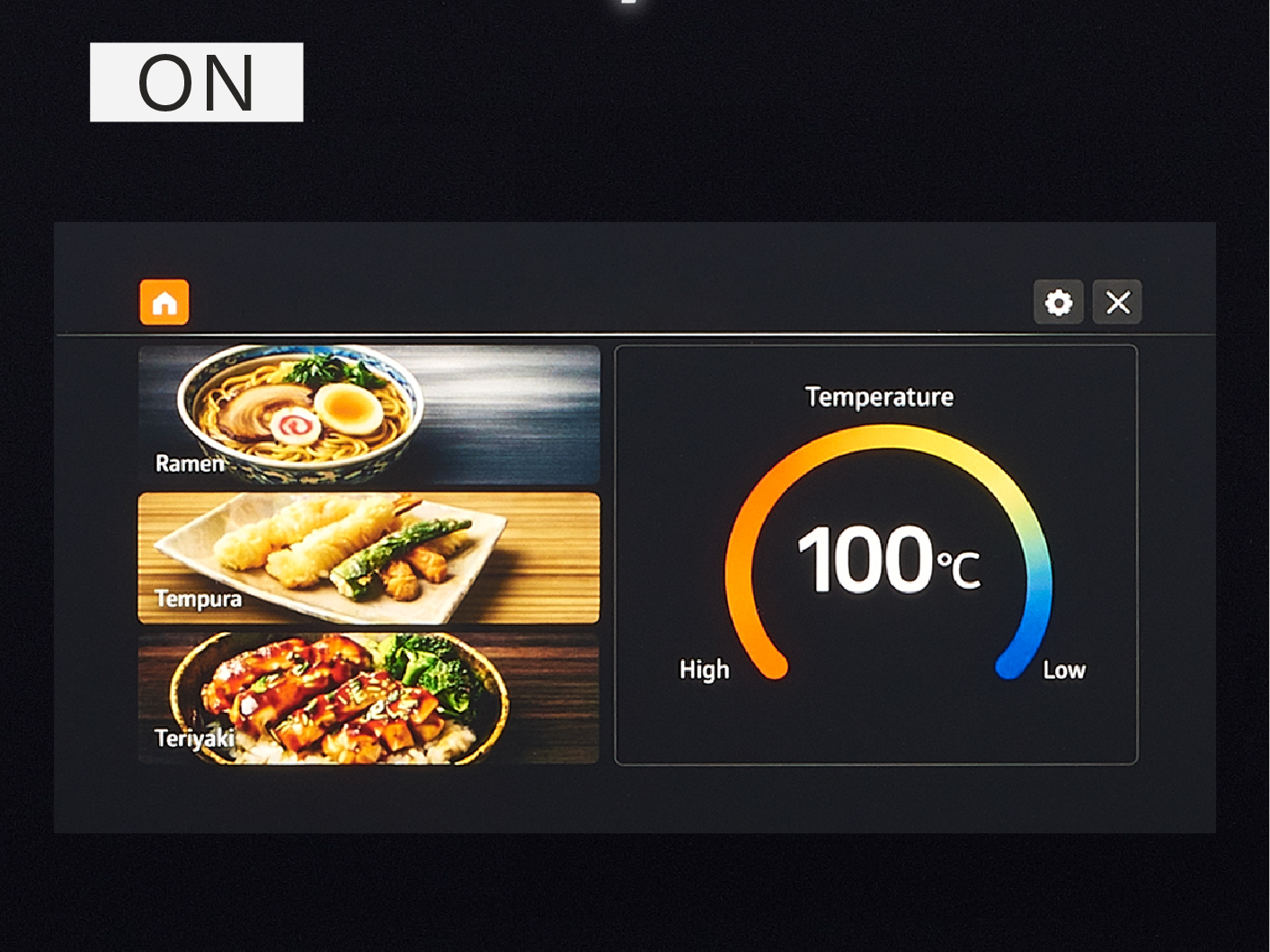

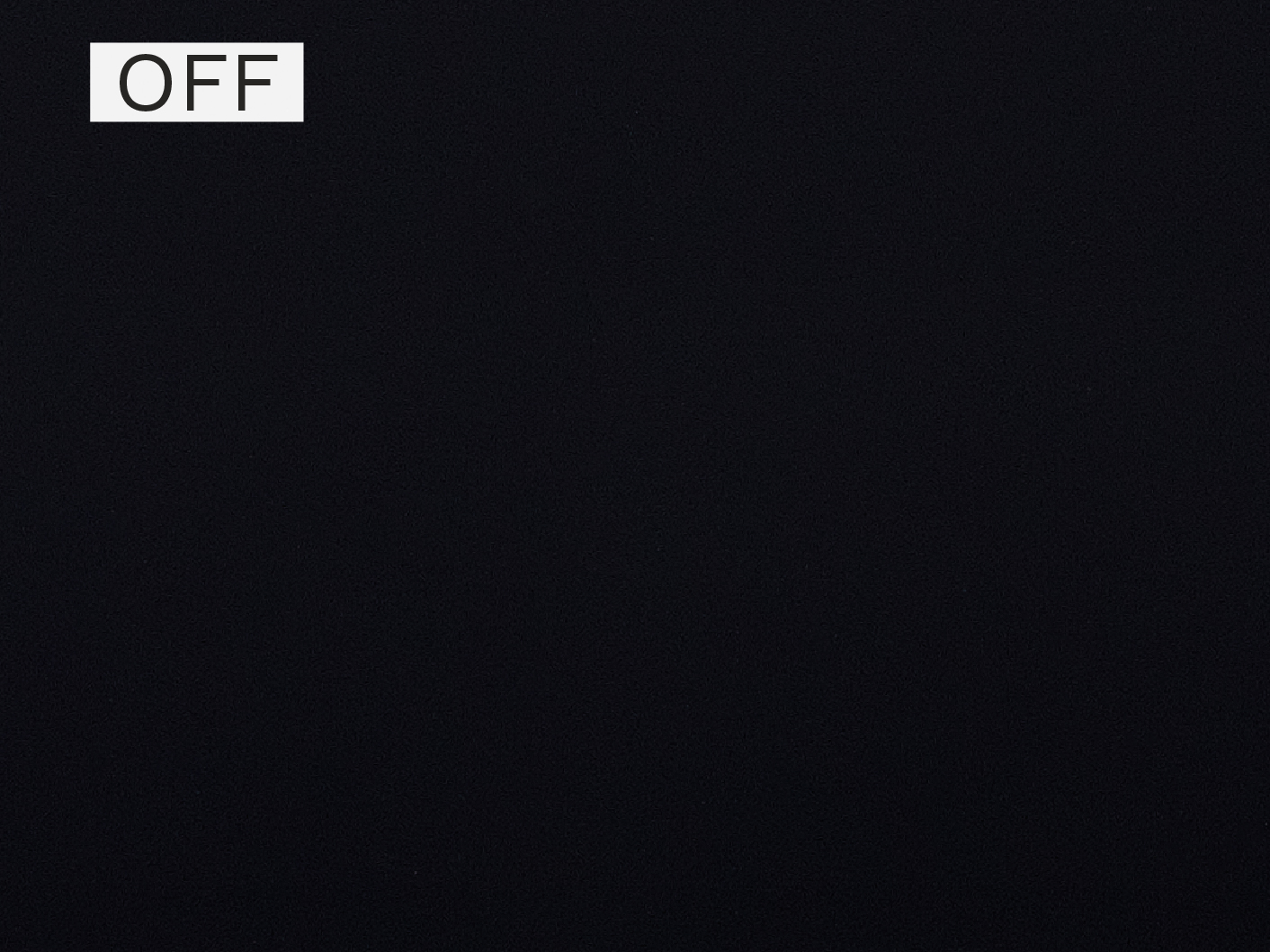

LCD transmission
Printing is available on all areas except those that require transparency.
General specs and customizable ranges
| Item | Standard | Customizable range | |
|---|---|---|---|
| Edge grinding | Round edge | Round edge + Polish | |
| Corner radius | 1 ≤ R ≤ 12 | ||
| Holes | — |
Burner holes Edge grinding: Round edge Standard dia: Φ80-100mm *2 Knob holes Edge grinding: Pencil edge Standard dia: Ø10-30mm *3 |
|
| Printing | Surface (Decorations) | — | Up to 1-layer *4 |
| Rear (Base color) | Lines / Characters *1 + Base color (Black) |
Color adjustment (Lines/Characters only) *5 No printing area (For LCD transmission) *6 Dead front |
|
| Clearance b/w print to edge | 2mm | ||
Remarks
*1 Color: Choose one from 'Light Grey', 'Grey', 'Dark Grey'.
*2 Up to 3 burner holes.
*3 Up to 4 knob holes. Two holes should be aligned along the X-axis, with a pitch of at least 150mm.
*4 Full-surface coatings (Matte finish or Easy Clean Coat) are not applicable.
*5 Color adjustment will be limited to a few preselected colors (currently being prepared).
*6 The minimum area is Φ2mm. An additional cost applies for 4 or more areas.

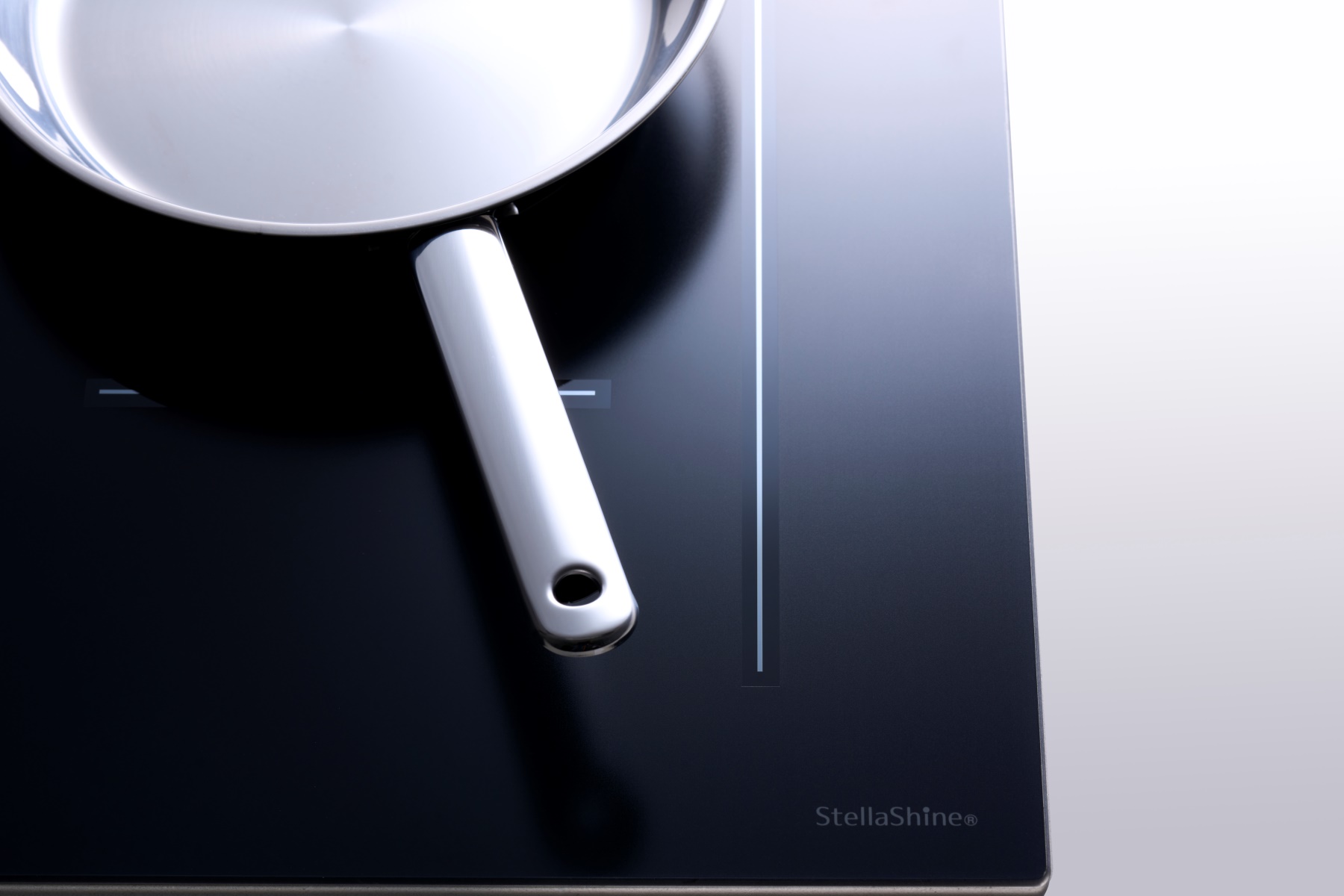

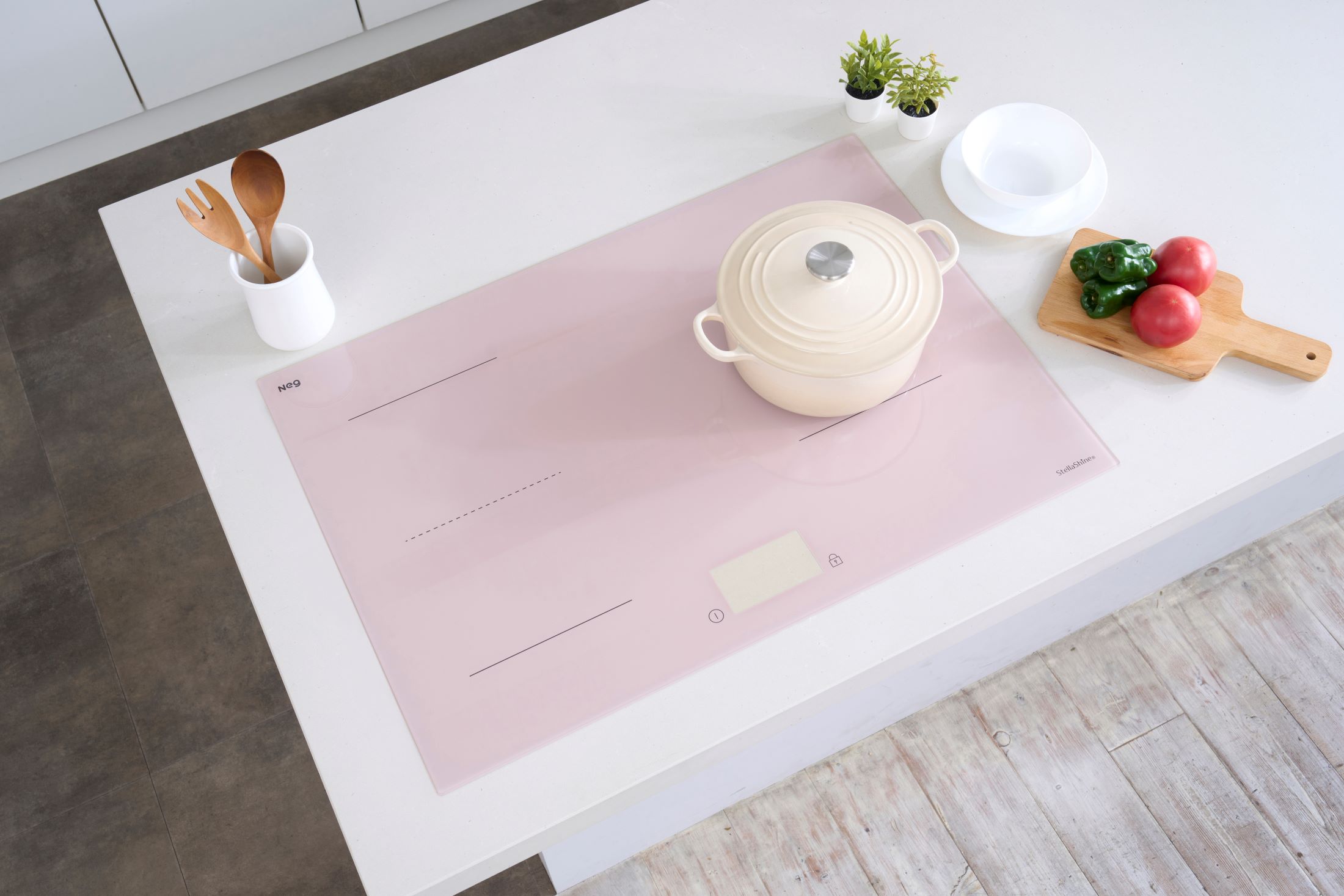

Lineup
