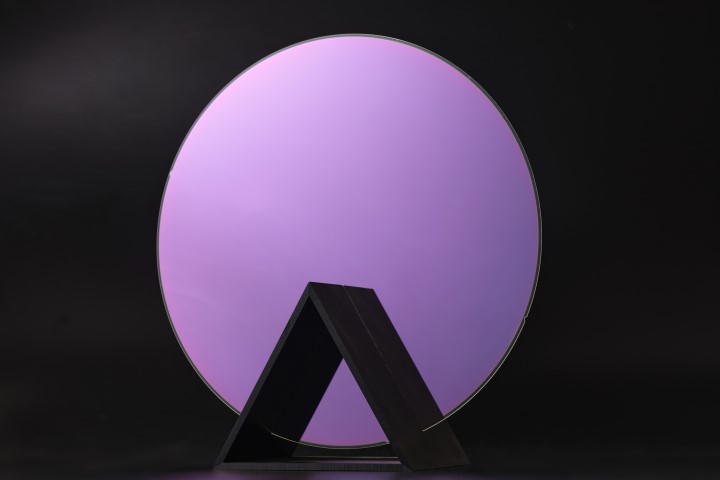

Index Matched Transparent Conductive Coating (ITO): IMITO
ITO that achieves high transmittance through the introduction of a refractive index-matching layer
High transmittance is achieved by adding a refractive index-matching layer between the substrate and the ITO. For near-infrared rays, a special material with high transmittance is used.
Applications
-
LCOS (for projectors, AR/VR)
-
LCOS (wavelength selective switches)
-
LCOS-SLM (spatial light modulators)
Features
-
High transmittance
The refractive index-matching layer ensures high light transmittance. -
Low defectivity
The coating’s low defect density enhances the reliability and performance of the device. -
High adhesion strength
The excellent adhesion of the coating contributes to extended lifespan of the devices.
Specifications

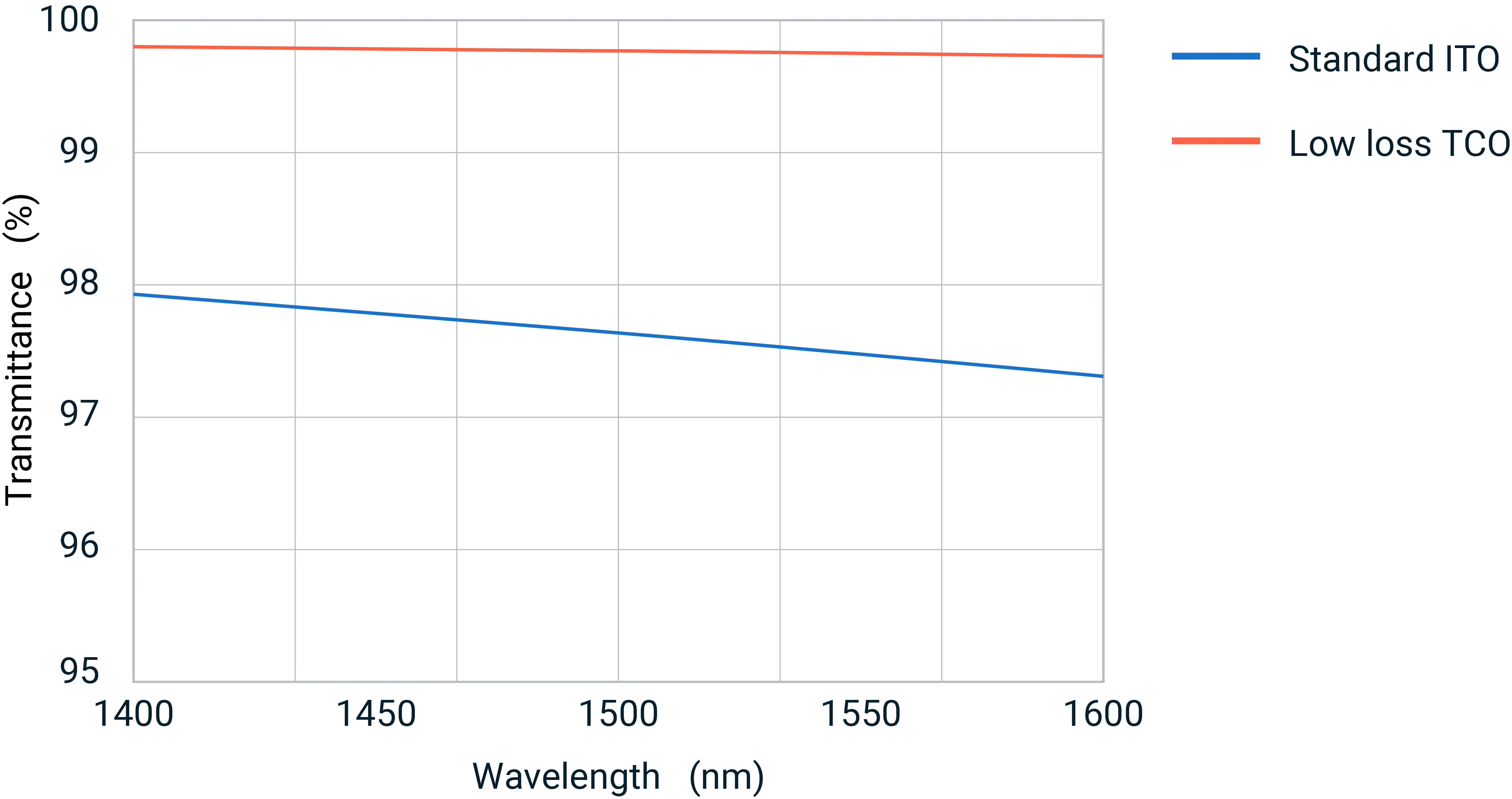

Transmittance
The addition of a refractive index-matching layer achieves a higher transmittance than conventional ITO.
-
The transmittance value excludes the effect of reflectance loss from the back surface of the glass substrate.

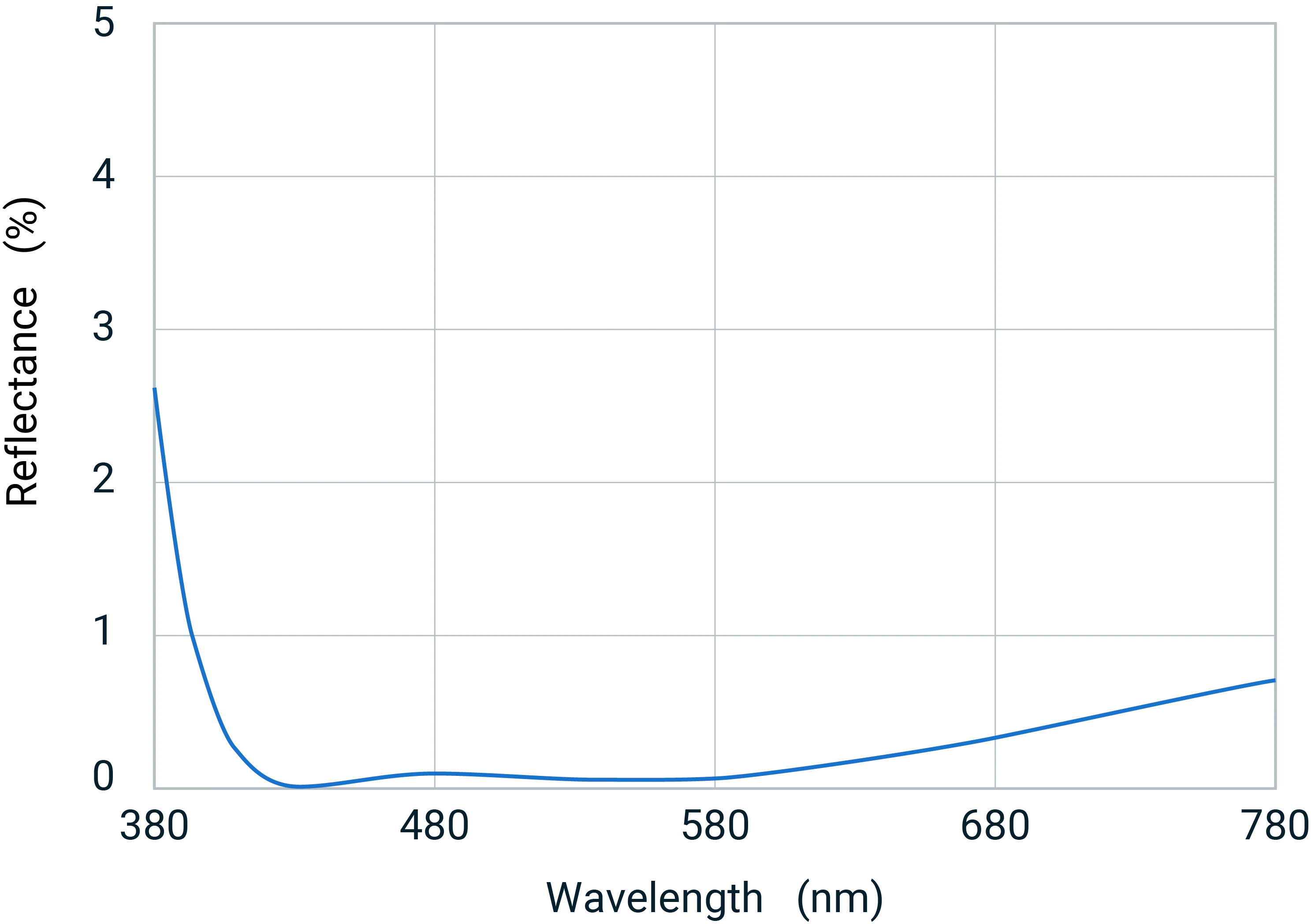

Reflectance
