Micro Lens

Micro optical components

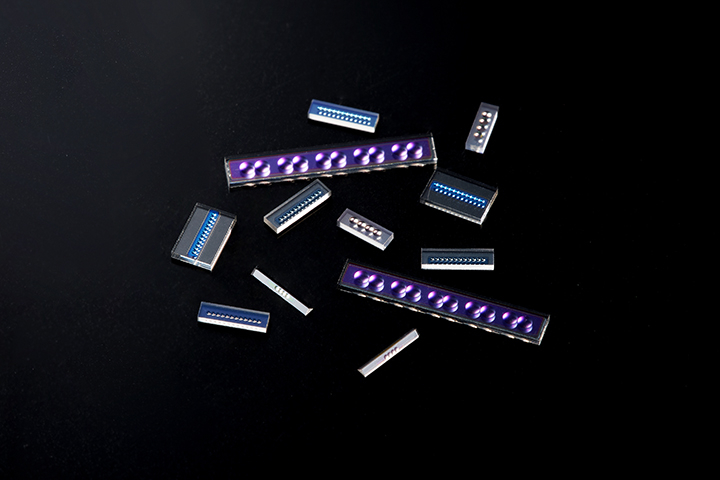

Micro Lens is an aspherical lens made from our proprietary high-refractive-index optical glass and advanced micro-mold pressing technology. We offer proposals starting from the optical design stage, supporting the miniaturization and high-density integration of optical modules.

Features
Specification Examples
Event Information

Features

High dimensional accuracy is achieved through mold pressing technology.
The high refractive index and aspheric surface ensure high coupling efficiency.
Excellent heat resistance and compatibility with the reflow process.
AR coating, ND coating, and optical filters can be applied to the surface.
Available in single-lens and multi-channel arrays.

Specification Examples

Material	XC-1 (our original optical glass)
Refractive index (n_d)	1.81
Shape	Plano-convex array type
Radius of curvature	RO. 165mm
Thickness	≤0.450 mm approx.
Lens convexity	≤0.040 mm approx.
Pitch	0.25 mm, 0.50 mm, etc.
