Micro Tubes

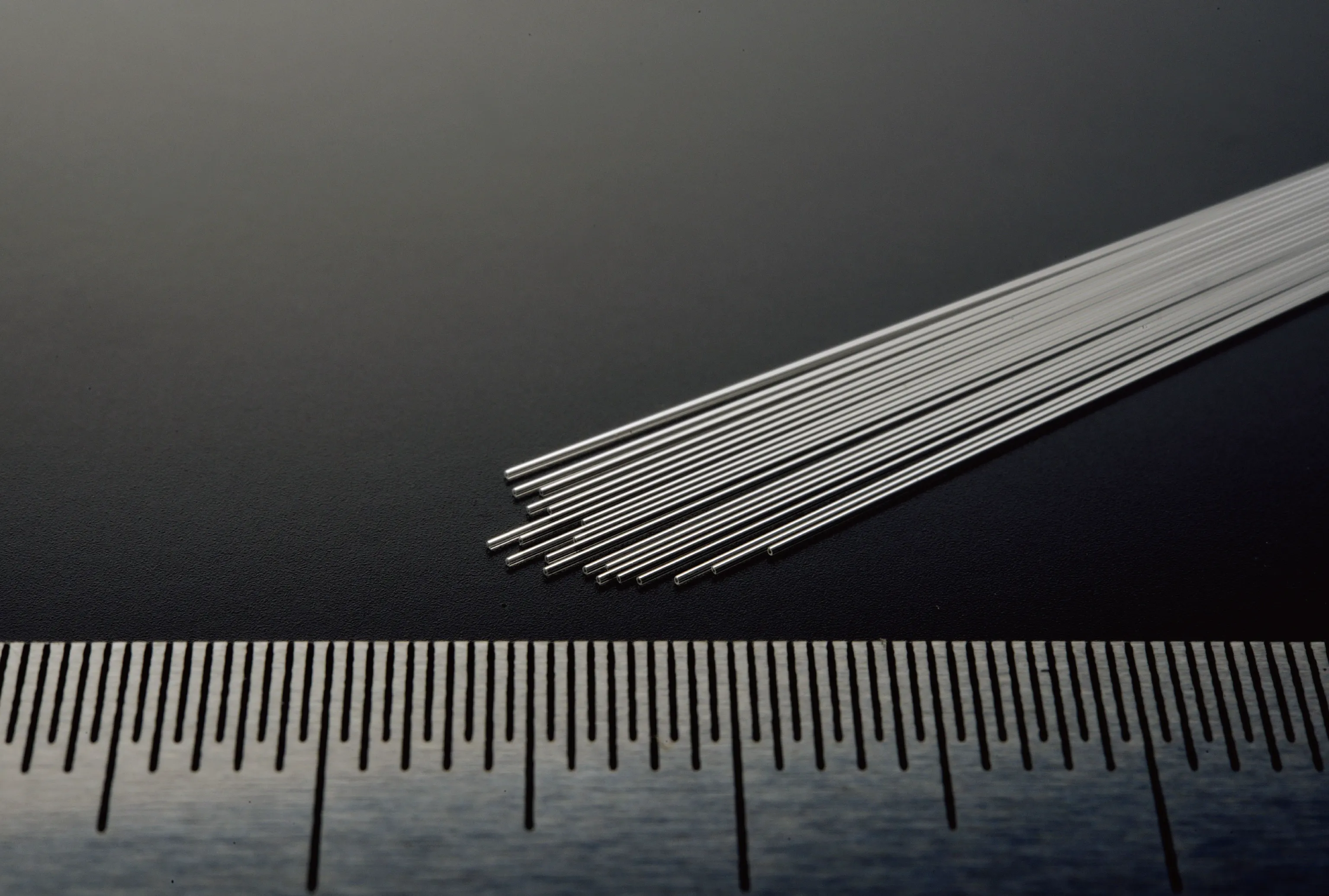

photo of Micro Tubes
Customizable thin-walled tubes from borosilicate glass

The micro tubes round type feature extremely thin glass tubing with a minimum outer diameter of 200 μm and a glass thickness as thin as 46 μm. The micro tubes square type offer glass microtubes with square cross-sections, available in square, rectangular, and oval shapes.

Features

  • Small diameter
  • Thin glass wall
photo of Micro Tube

Specification Example: Round Type

figure of round dimension

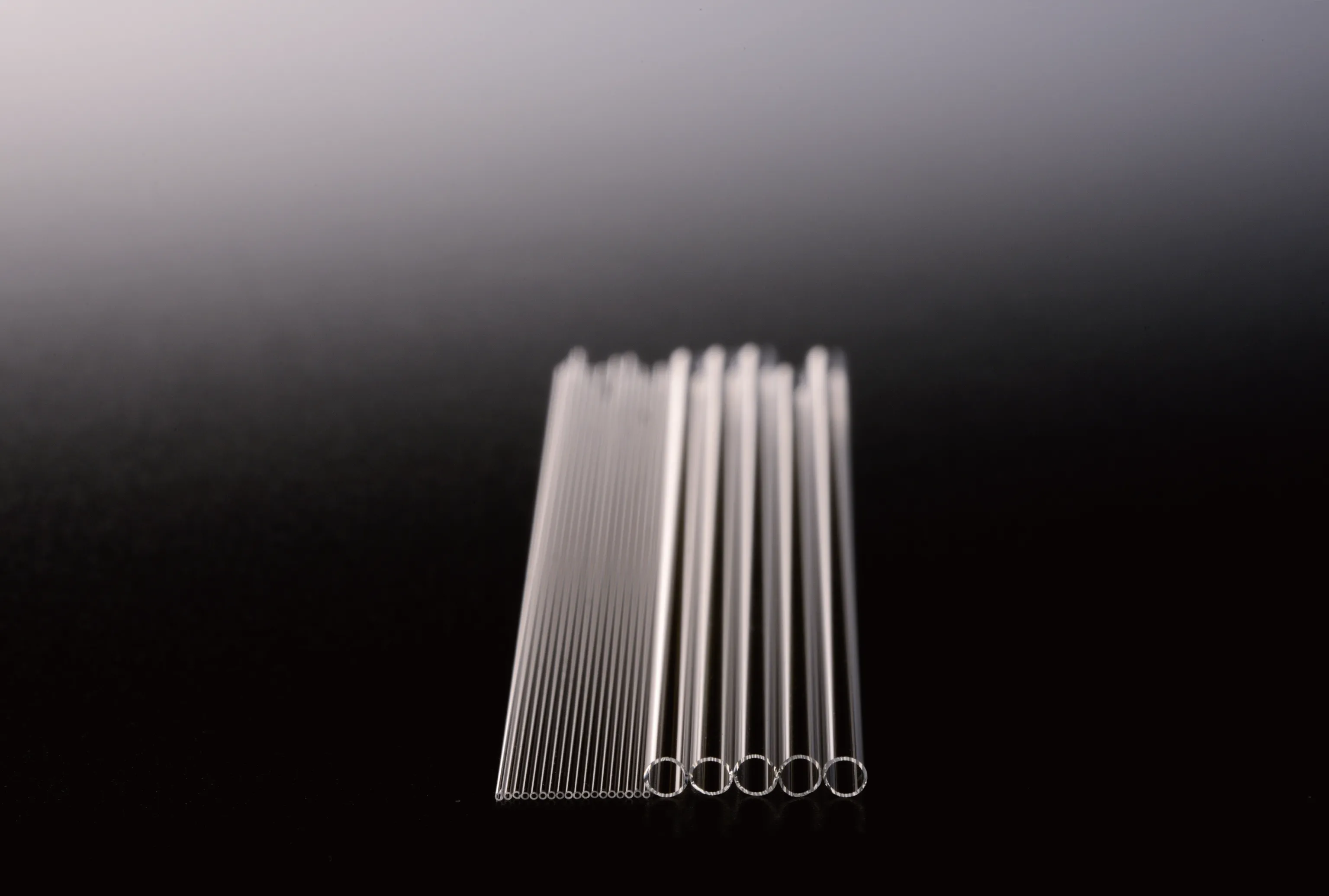

photo of Micro Tube round type
Examples of products A B
Outer diameter μm 225 1200
Inner diameter μm 132 1000
Thickness μm 46 100
Length mm 30 30

Specification Example: Square Type

figure of square dimensions

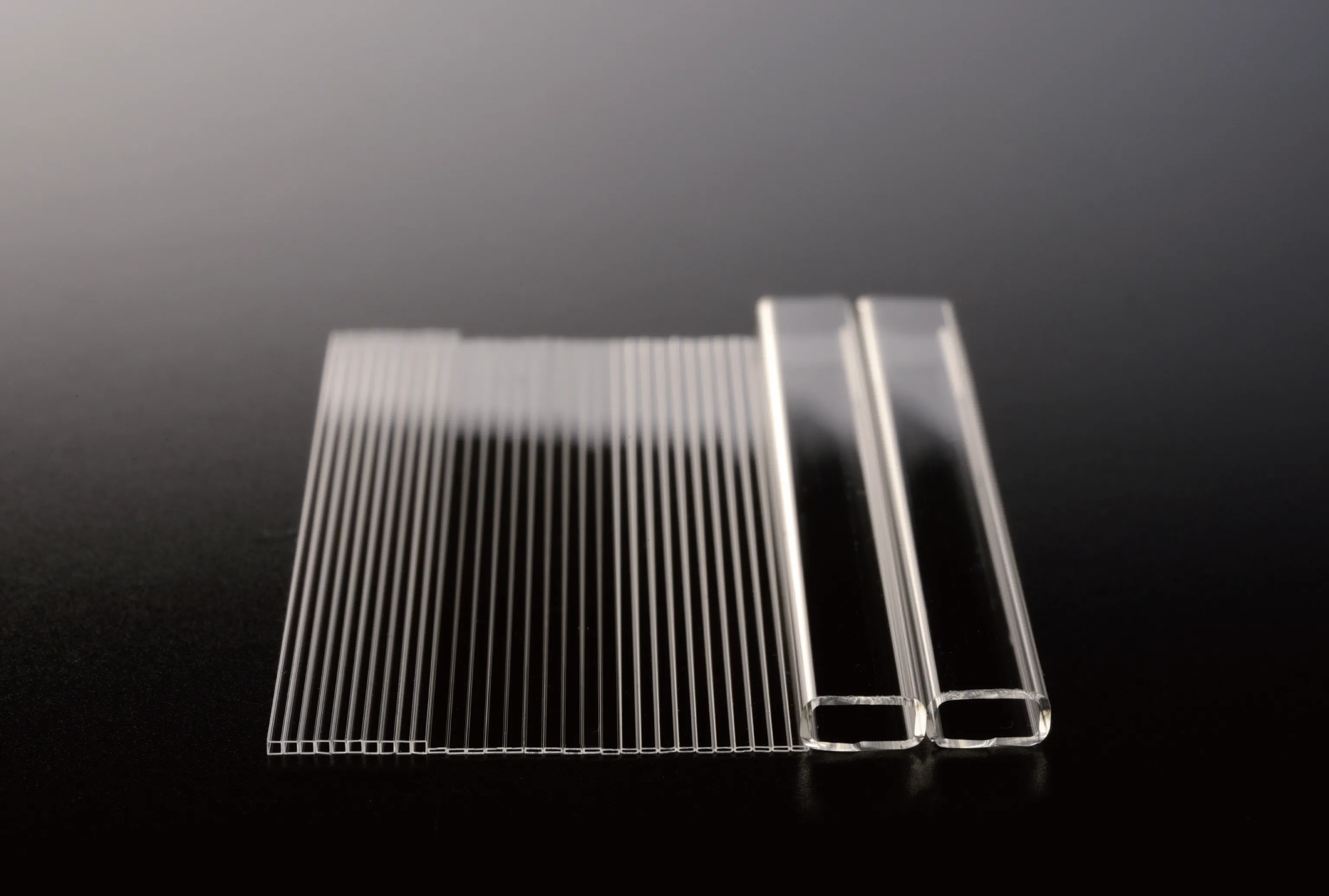

photo of Micro Tube square type
Examples of products C D E (oval shape)
Height μm 500 2000 200
Width μm 500 4000 600
Thickness μm 50 50 50
Length mm 30 30 30
