Glass Polarizer: ITW

Low‑loss, high‑reliability optical polarization component for communications

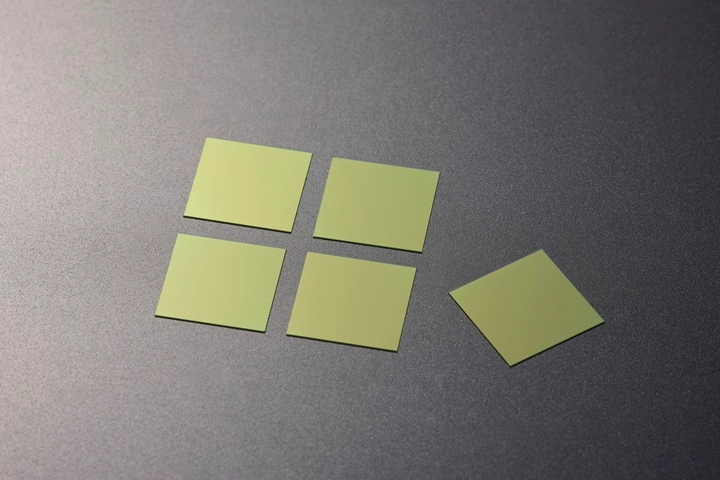

Glass polarizer is a precision optical component designed to control the polarization characteristics of light, primarily used in optical isolators for optical communication systems. It features a high extinction ratio, low insertion loss, and minimal axis deviation, ensuring a uniform in-plane extinction ratio distribution. AR coating can be applied upon request, further enhancing optical performance and contributing to overall system efficiency.

Features

  • High extinction ratio
  • Uniform in-plane extinction ratio distribution
  • Low insertion loss
  • High reliability

Standard Dimensions

  • 11mm×11mm×0.2mmt

Characteristics

  ITW
  AR coated Uncoated
Extinction ratio (dB) ≧ 57
Insertion loss (dB) ≦ 0.25 ≦ 0.46
AR coat reflectance (%) ≦ 0.25 —

Wavelength: 1310nm/1550nm
