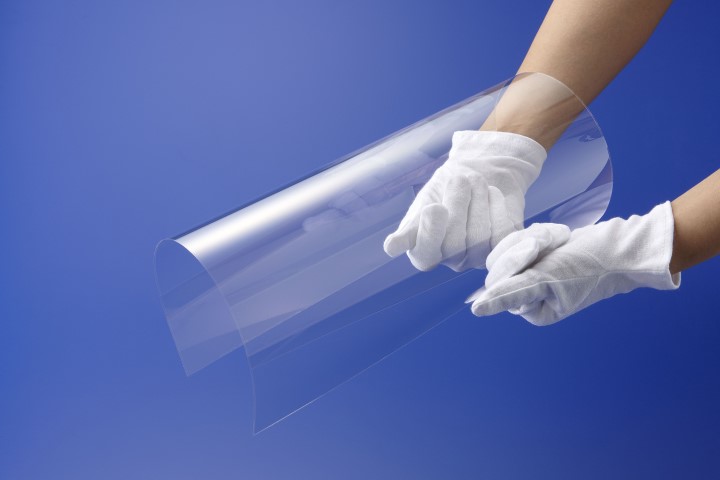

Ultra-thin Glass Laminated on Resin: Lamion™ [Flexible Type]

A high-performance hybrid material combining the advantages of glass and resin

This hybrid material combines Ultra-thin Glass G-Leaf™ with resin film, offering the advantages of both materials. It features scratch resistance, excellent gas barrier properties, lightweight, and impact resistance. It can be used as a substitute for resin materials in areas where high gas barrier properties or dimensional stability are required.

Applications
Features
Configuration and Dimensions
Event Information

Applications

Mold for Nanoimprint lithography (NIL)

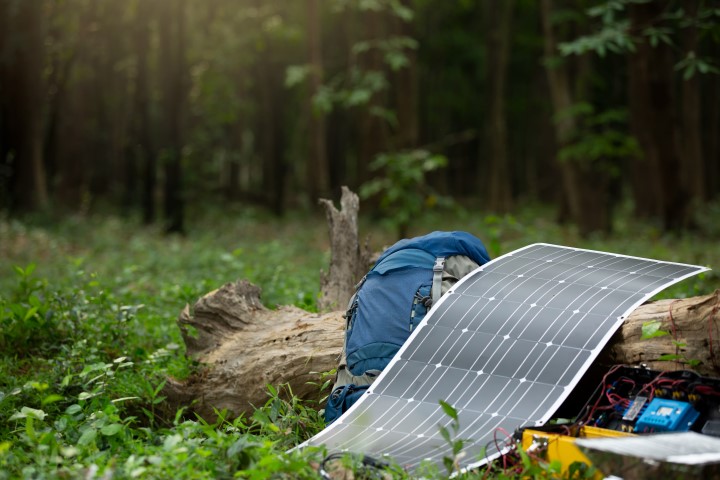

Flexible solar cells
Flexible displays

photo of structures created by Nanoimprint lithography (NIL)

Features

Dimensional stability
Achieves high dimensional stability thanks to the low expansion properties of glass.
Flexibility
Designed to be bendable for versatile applications.
High gas barrier properties
Exceptional water vapor resistance, with transmittance below measurable limits (<1×10⁻⁶ g/m²/day).
Scratch resistance
Features a glass surface with a pencil hardness of 9H or higher.
Shatterproof
Laminated with resin to prevent shattering, even if broken.

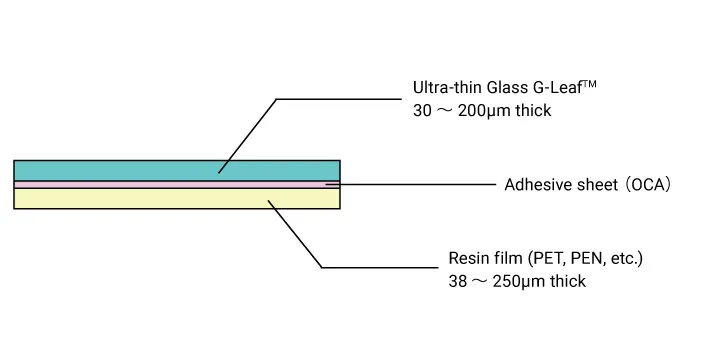

Configuration and Dimensions

Product size: Max. 600 x 600mm
Thickness of glass and resin are adjustable
Resin selection: Polycarbonate (PC), acrylic (PMMA), PET, PEN, etc.
Various functional film coatings available: ITO coating, anti-reflection coating , anti-glare coating, anti-fingerprint coating
